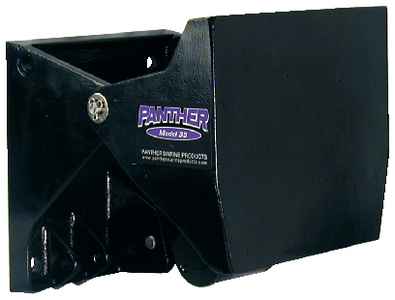

550035 Panther Trim & Tilt Model 35 | Panther
SKU:
781-550035Category:
Trim and Tilt UnitsBrand:
This heavy-duty bracket easily handles auxiliary outboards up to 35hp or 150 pounds. Kicker motors are supported in any position with this durable design, featuring a 12 volt actuator that you control with a remote on a 12' cable. The Model 35 is the only kicker motor lift with a convertible setback. This unit will tilt your motor approximately 60°. The Model 35 is the only kicker motor lift with a convertible setback; this unit can be adjusted to 8 or 13 inches of setback, making it ideal for inboards, I/Os, jet-drives, and outboards when over the transom mounting is unavailable. Made of 713 cast aluminum. protected with durable black powder coat paint.
559035: Optional 2-piece, cast aluminum spacer kit provides an extra 3" of setback to allow most kicker motors to be tilted up without hitting transom.
550105: Optional wireless remote available.
Specifications |
|
_Description |
Model 35 O/B Motor Lift |
_Rating |
Up to 35hp/150 lbs. |
Shipping Details |
|
Weight |
29.50 lb |
Length |
9.00 in |
Height |
17.25 in |
Width |
13.00 in |
