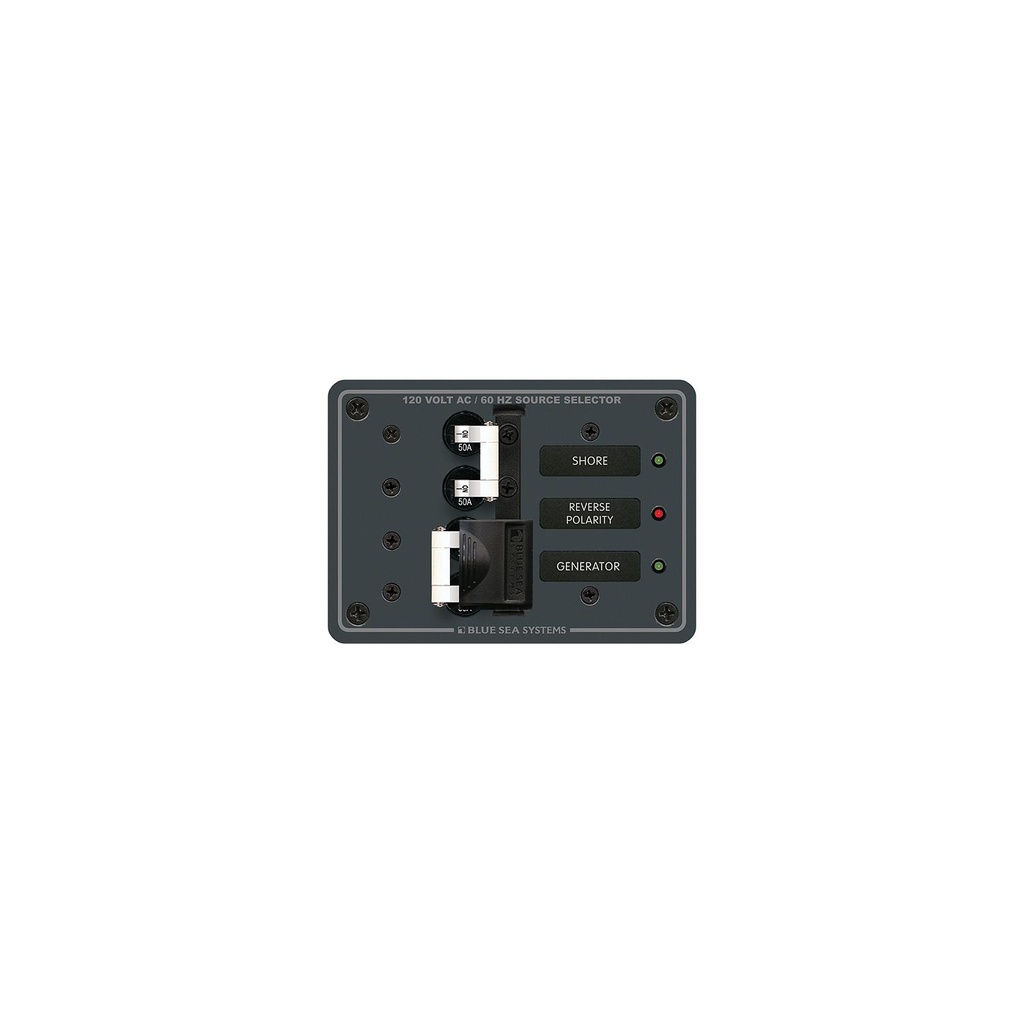

AC Source Selection panels allow the boater to select between AC sources to supply power
to the AC Branch distribution system.
- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Brand | Blue Sea Systems |
_Positions | 2 Sources |
_Size | 5-1/4" W x 3-3/4" H |
_Volts | 120V |
_Breakers | 2 Main, 50A |
Shipping Details | |
Weight: | 1.40 lb |
Length: | 4.29 in |
Height: | 8.42 in |
Width: | 6.25 in |
