8059 Panel 120Vac 8 Circuit Breaker | Blue Sea Systems

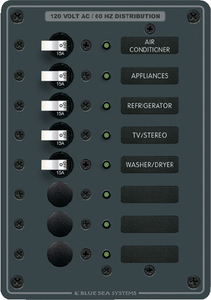

Blue Sea Systems 8059 AC 8 Position Circuit Breaker Panel
SKU:
661-8059Category:
Breaker PanelsBrand:
AC Branch panels distribute current from a high amperage input into lower amperage circuits. Styled to match existing panels, the traditional metal panels are equally suited for use as extensions to existing panels or as full replacements.
All panels are pre-wired and include LEDs in all positions and label backlighting. Marine grade aluminum frame securely holds fixed panel components and is chemically treated to resist corrosion. Includes 8031 label set and 5 15A breakers w/white toggles. Max 100 amps.
Specifications |
|
_Positions |
8 |
_Size |
5-1/4"W x 7-1/2"H |
_Volts |
120V |
_Breakers |
5 15A |
Shipping Details |
|
Weight |
2.50 lb |
Length |
11.42 in |
Height |
4.50 in |
Width |
6.25 in |
