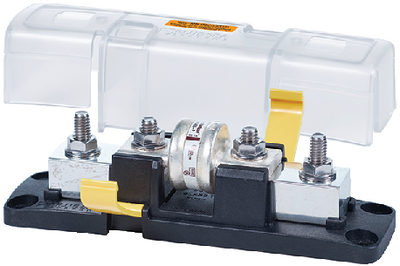

5502100 Fuse Block Class T Ip 225-400A | Blue Sea Systems
Progressive Industries Class T Fuse Block With Insulating Cover, 400A
SKU:
661-5502100Category:
Fuse BlocksBrand:
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Specifications |
|
_Amps |
225-400A |
_Size |
Up to 4/0 AWG |
_Stud |
5/16"-18 (M8) |
Shipping Details |
|
Weight |
0.22 lb |
Length |
9.00 in |
Height |
3.00 in |
Width |
7.25 in |
