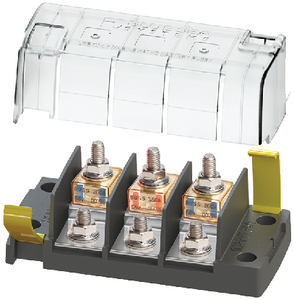

- Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
- The independent source fuse block (5194) is ideal for 3 output battery chargers
- Clip-on cover insulates terminal connections
- Versatile wiring options allow all wires to come out a single side
- Label recesses for easy circuit identification
- One-piece stainless flange nuts ensure safe and secure connections
- Ignition protected when used with MRBF fuses
- Fuses sold separately
Specifications:
- Voltage Max. Operating: 58V DC
- Amperage Max. Operating: 240A per circuit
- Terminal Fuses Available: 30300 Amps
| Brand | Blue Sea Systems |
| Description | Independent Source |
| Fuse | 3 |
| Stud | M8 (5/16"-18) |
