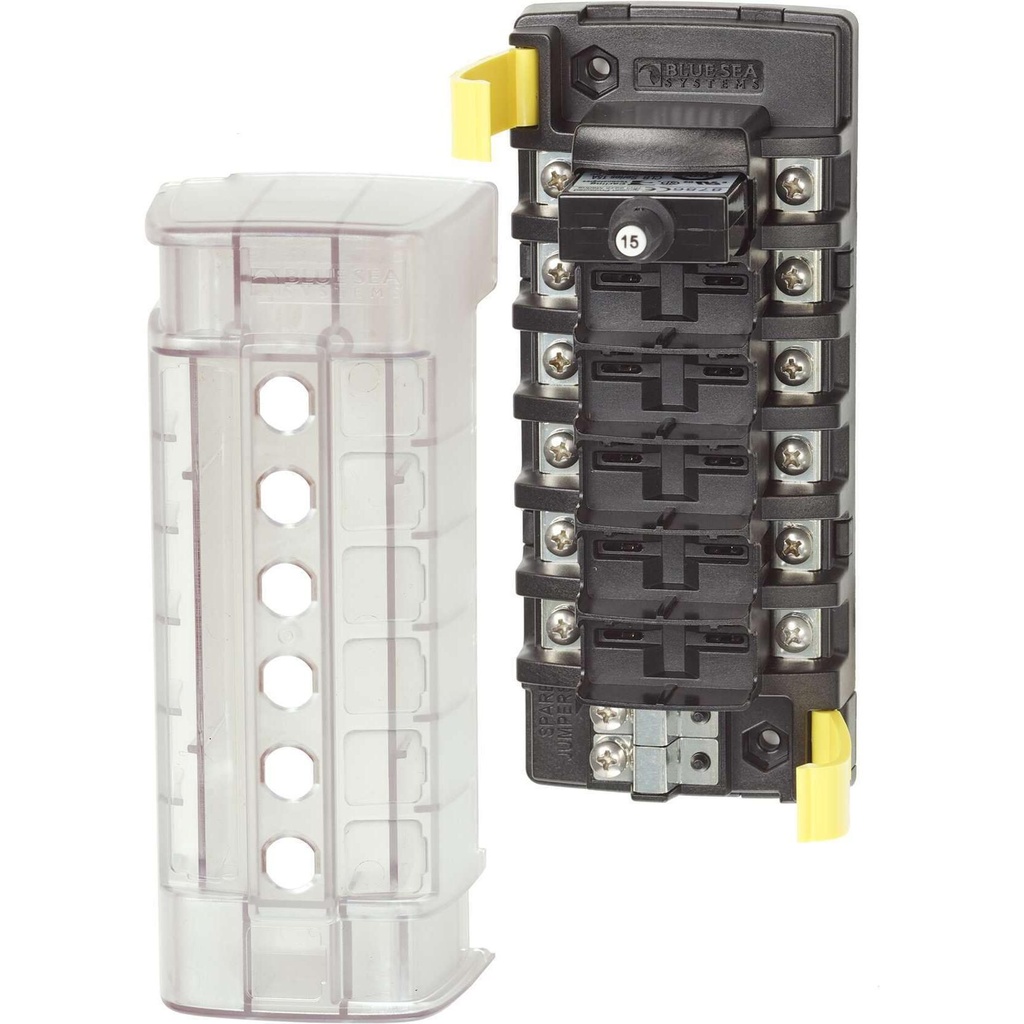

Blue Sea St Clb Push Button Circuit Breaker Block
SKU:
661-5050Category:
Circuit BreakersBrand:
- Description
- The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
- Features:
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
- Specifications:
- Circuits: 6
- Maximum Amperage : 32A (per circuit), 40A (per jumped circuit group)
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4) or #8 Nut
- Source: Independent Source
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 60° C
- Mounting Centers: 5.63" (143 mm)
- Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
- Height: 6.69" (169.93 mm)
- Weight: 0.75 lbs (0.34 kg)
Specifications |
|
_Description |
6 circuit (independent) |
Shipping Details |
|
Weight |
0.75 lb |
Length |
9.75 in |
Height |
2.75 in |
Width |
4.00 in |
