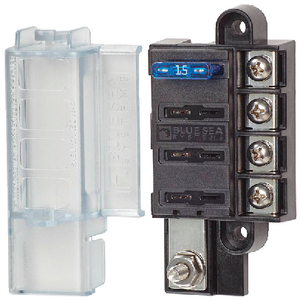

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
- Compact common source fuse block
- Accepts ATO® and ATC® fast acting blade fuses
- Single side entry wiring
- Ignition Protected - for use in a gasoline engine compartment
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Small format standard and custom labels available
- Fuses sold separately
Specifications:
- Voltage Max. Operating: 32V DC
- Amperage Max. Operating: 30A per circuit
- Amperage Max. Operating: 100A per block
- Fuse Type: ATO® or ATC® Fuses
- Screw Terminal: #8-32 Screws with captive star lock washer
- Mounting: #8 Screw (M4)
| Brand | Blue Sea Systems |
| Description | 4 Circuit w/Cover |
| Terminals | #8-32 |
