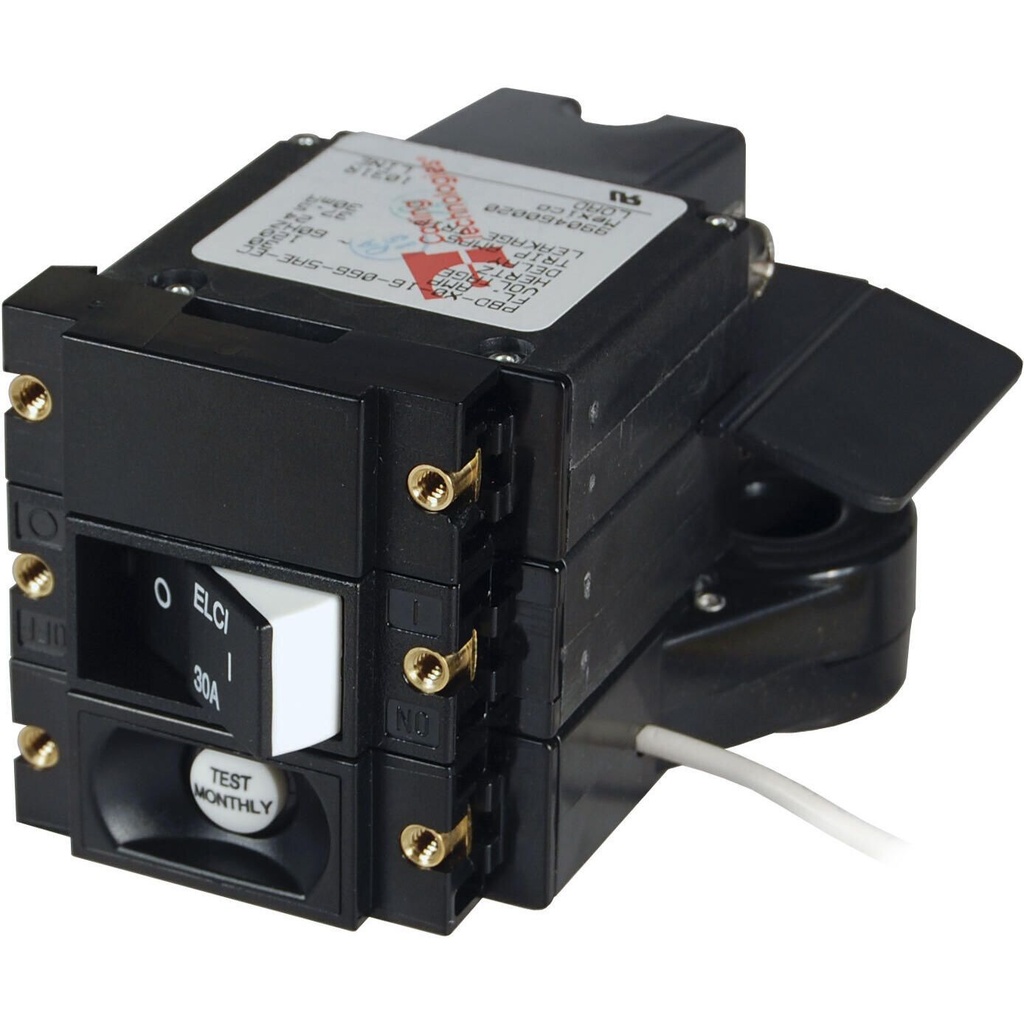

3102100 Elci 120Vac 30A 2Pl 30Am Ip Fr | Blue Sea Systems
SKU:
661-3102100Category:
Circuit BreakersBrand:
Description
The 30A Blue Sea Systems A-Series Main Residual Current Circuit Breaker provides over current and leakage protection per ABYC E-11 for whole boat shore power protection. It meets UL 1500 external ignition protection requirements and trips on short circuit, overload, or leakage to ground.
Features:
- Provides overcurrent and leakage protection per ABYC E-11 for whole-boat shore power protection
- For installation in a power distribution panel
- Trips on short circuit, overload, or leakage to ground
- Ignition protected
Specifications:
- Double pole
- Frame Series: A-series
- Actuator Style: Flat rocker
- Leakage Trip Amperage: 30 mA
- Interrupting Capacity: 5,000A
- Nominal Voltage: 240V AC (120V AC per pole)
- Minimum Operating Temperature: -35°C
- Maximum Operating Temperature: 66°C
- Switching Cycles: 10,000A @ rated amperage and voltage
- Type: Magnetic hydraulic trip-free
- Mounting Screw: #6-32 Stainless steel
- Mounting Screw Torque: 6 - 8 in-lb. recommended
Specifications |
|
_Type |
2 pole |
_Amps |
30 |
_Description |
ELCI Main A-Series 120V AC per pole Flat Rocker |
Shipping Details |
|
Weight |
0.85 lb |
Length |
6.00 in |
Height |
3.75 in |
Width |
5.00 in |
