- For 12 and 24 volt systems
- Simple, quick, Plug & Play installation
- Instant response
- Built-in retractor
- Low profile design

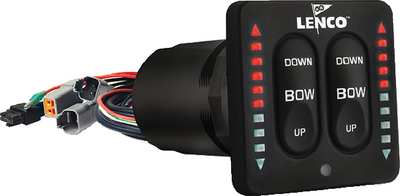

- Self-contained key pad with waterproof Plug & Play Deutsch connectors
- Wiring harness length 30" (76.2 cm) from the back of the switch bezel
- 36" power pigtail for control box
- 2-1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
- 4.08" clearance required from the back of the key pad's mounting location
- 2 high-intensity LED Indicator displays show the exact position of trim tabs at all times
- Photo Eye for optimum viewing in all light conditions
- Backlit key pad for optimum viewing at night
- Self-Check feature only available on the 15170001
| Brand | Lenco |
| Fits | Single Actuator Systems |
| Size | 2.75" x 2.75" |
| Volts | 45284 |
