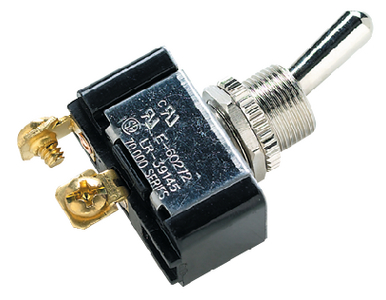

All toggle switches have a chrome plated brass handle, mounting stem and face nut. Mounting stems are 15/32" L; 15/32"-32 thread diameter.
Brand | Seachoice |
_Case | 12 |
_Max Panel | 3/8" |
_Positions | 2 - Off/ Mom On (SPST) |
_Rating | 25A @ 12V DC, 25A@ 6 & 12V DC Inductive Load 20A @ 6 & 12V DC Lamp Load |
_Terminals | 2 screw |
Shipping Details | |
Weight: | 0.25 lb |
Length: | 5.0 in |
Height: | 1.0 in |
Width: | 3.75 in |
