Thermal AC/DC Circuit Breakers are constructed of molded Bakelite with stamped brass contacts. Used to protect an electrical circuit from damage caused by excess current. These push-to-reset circuit breakers are an economical alternative to magnetic breakers. Quick connect terminal style breakers are vibration and shock resistant. An alternative to fuses; they have the advantage of being resettable after tripping. Panel mounted compact design. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 4-35A @ 125-250VAC. 32VDC.
| Brand | Sea-Dog Line |

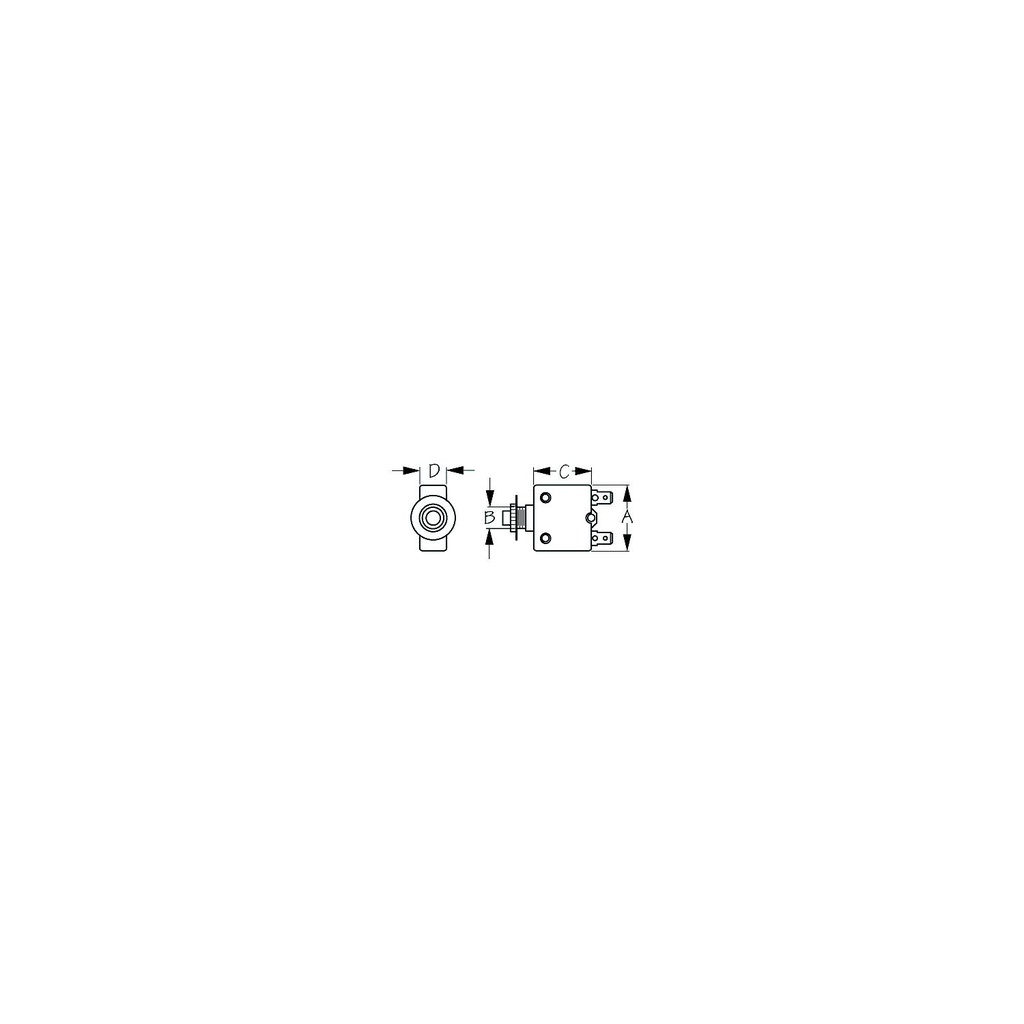

| _A | 1-3/8" |
| _B | 7/16" |
| _C | 1-1/4" |
| _D | 9/16" |
| _Amps | 30 |
| Shipping Details | |
| Weight: | 0.08 lb |
| Length: | 5.81 in |
| Height: | 1.25 in |
| Width: | 3.88 in |
