Thermal AC/DC Circuit Breakers are constructed of molded Bakelite with stamped brass contacts. Used to protect an electrical circuit from damage caused by excess current. These push-to-reset circuit breakers are an economical alternative to magnetic breakers. Quick connect terminal style breakers are vibration and shock resistant. An alternative to fuses; they have the advantage of being resettable after tripping. Panel mounted compact design. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 4-35A @ 125-250VAC. 32VDC.

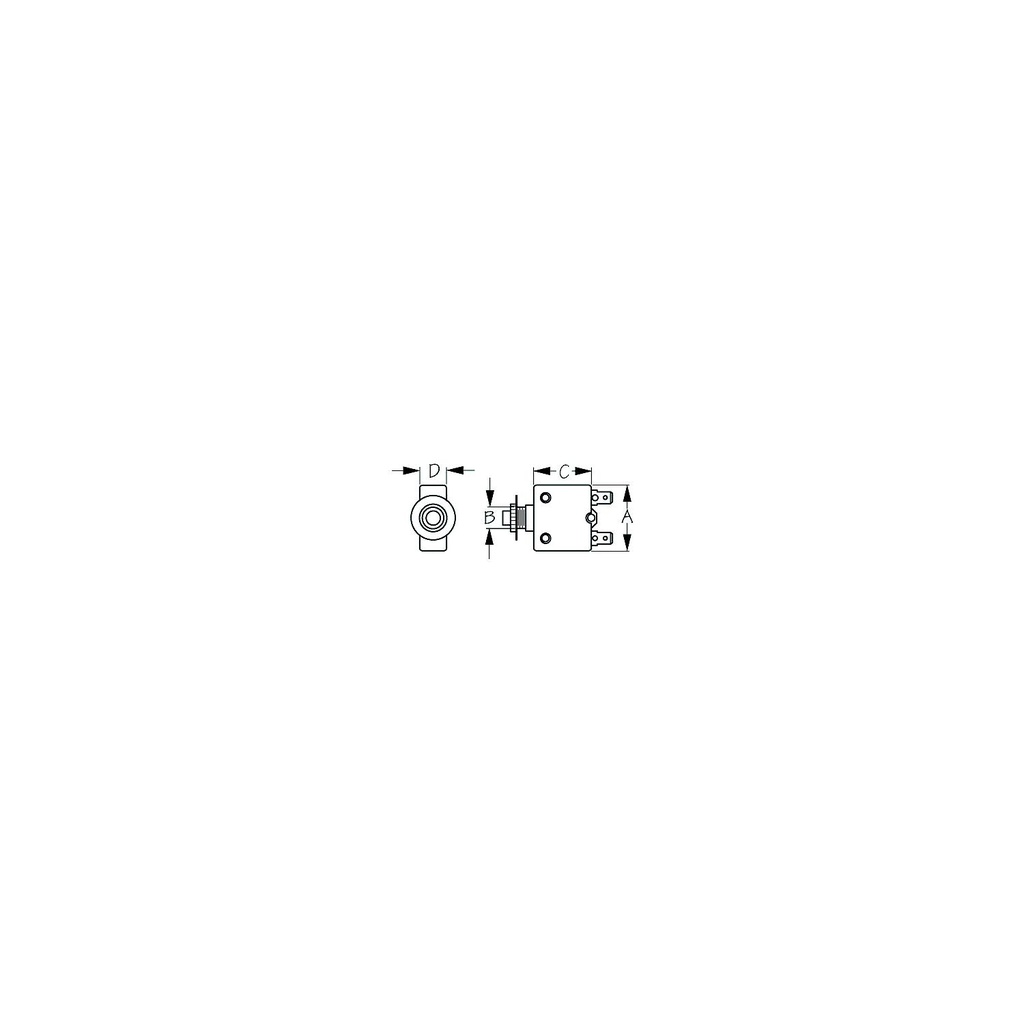

| Brand | Sea-Dog Line |
| A | 1-3/8" |
| B | 7/16" |
| C | 1-1/4" |
| D | 9/16" |
| Amps | 20 |
