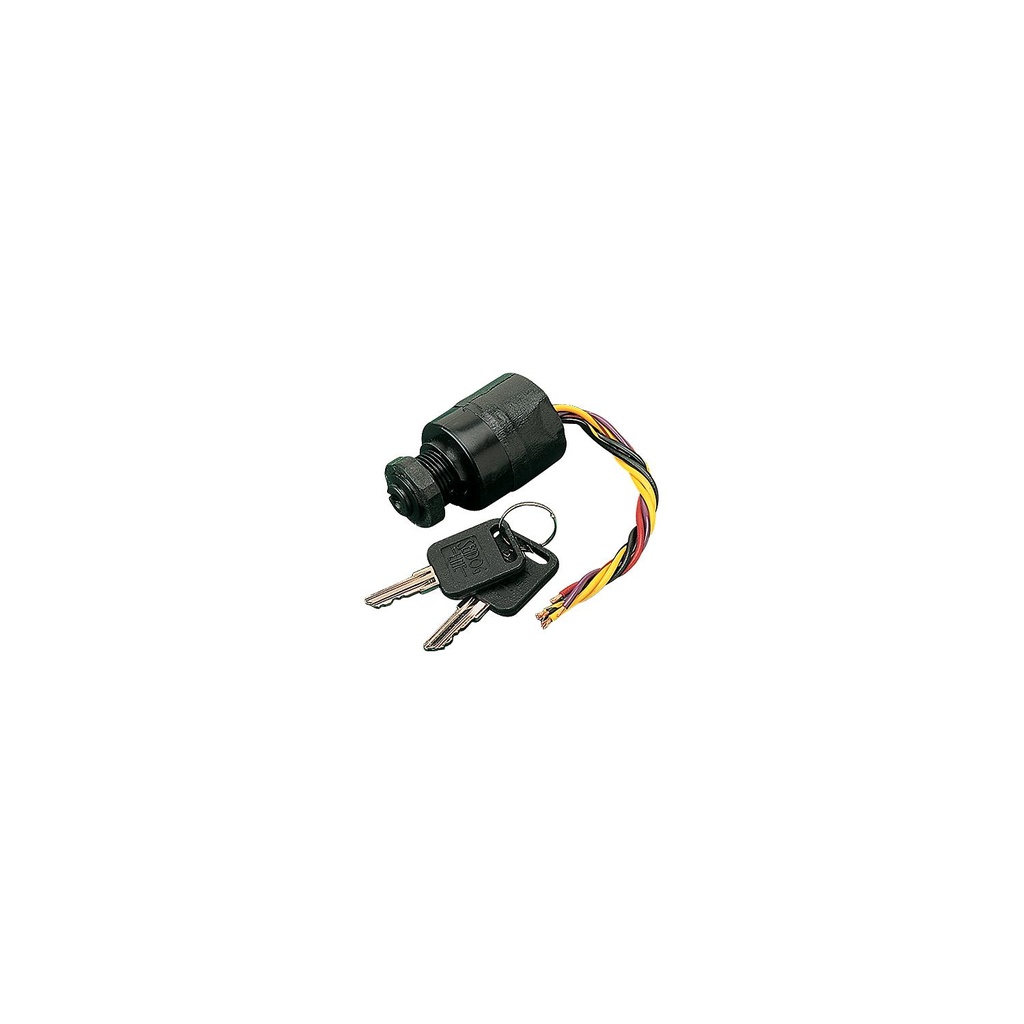

420383-1 Poly 3-Position Key Switch W/C | Sea-Dog Line
3 Position Magneto Style Ignition/Starter Switch
SKU:
354-4203831Category:
Ignition SwitchesBrand:
Three Position Magneto Style Ignition Switch is constructed of polypropylene. For off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8. Six wire electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Includes two keys. Push to choke.
Specifications |
|
_Panel |
5/8" Max |
_Terminals |
6/ Wire |
_Boot |
No |
Shipping Details |
|
Weight |
0.04 lb |
Length |
7.88 in |
Height |
1.50 in |
Width |
3.88 in |
