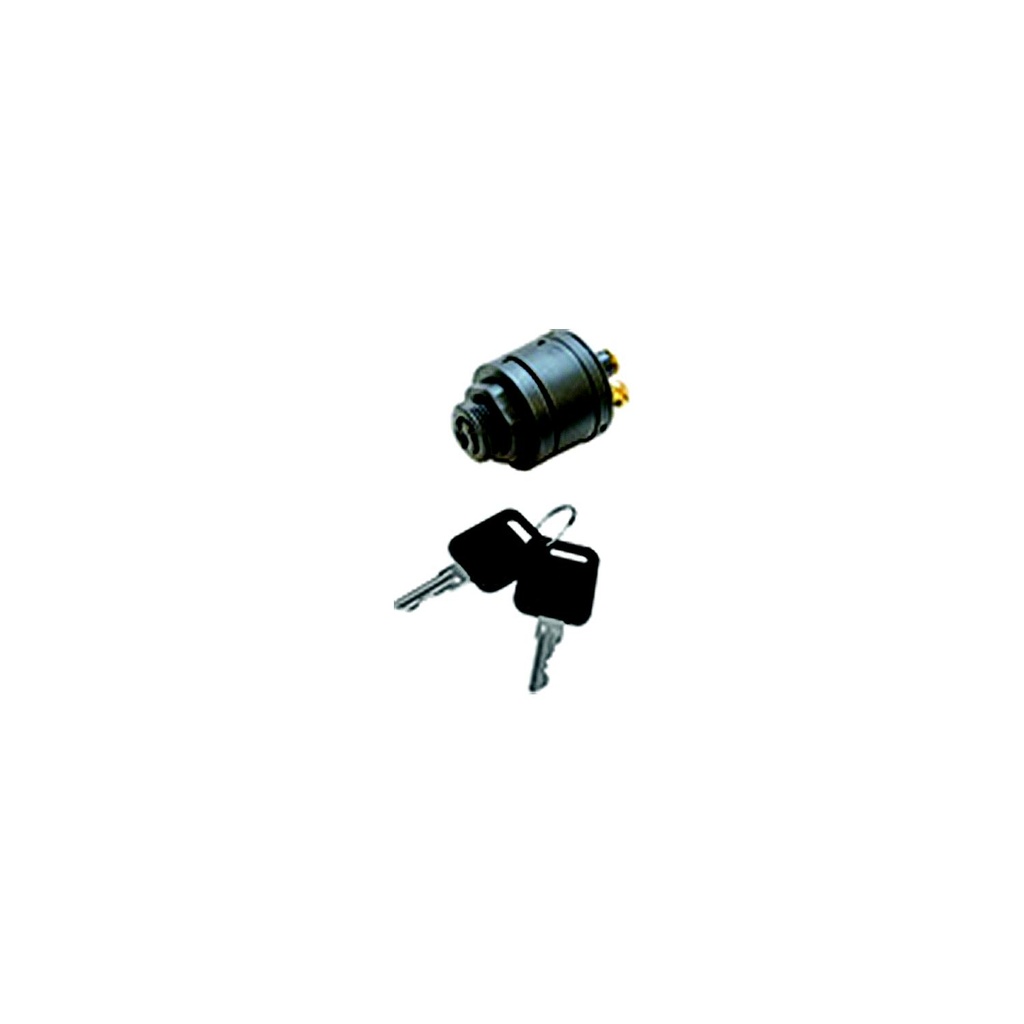

Three Position Magneto Style Ignition Switch is constructed of polypropylene. For off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8. Six screw or five screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Includes two keys. Push to choke.
| Brand | Sea-Dog Line |
| _Panel | 5/8" Max |
| _Terminals | 5 Screws, 1 Boss |
| _Boot | No |
| Shipping Details | |
| Weight: | 0.04 lb |
| Length: | 5.81 in |
| Height: | 1.5 in |
| Width: | 3.88 in |
