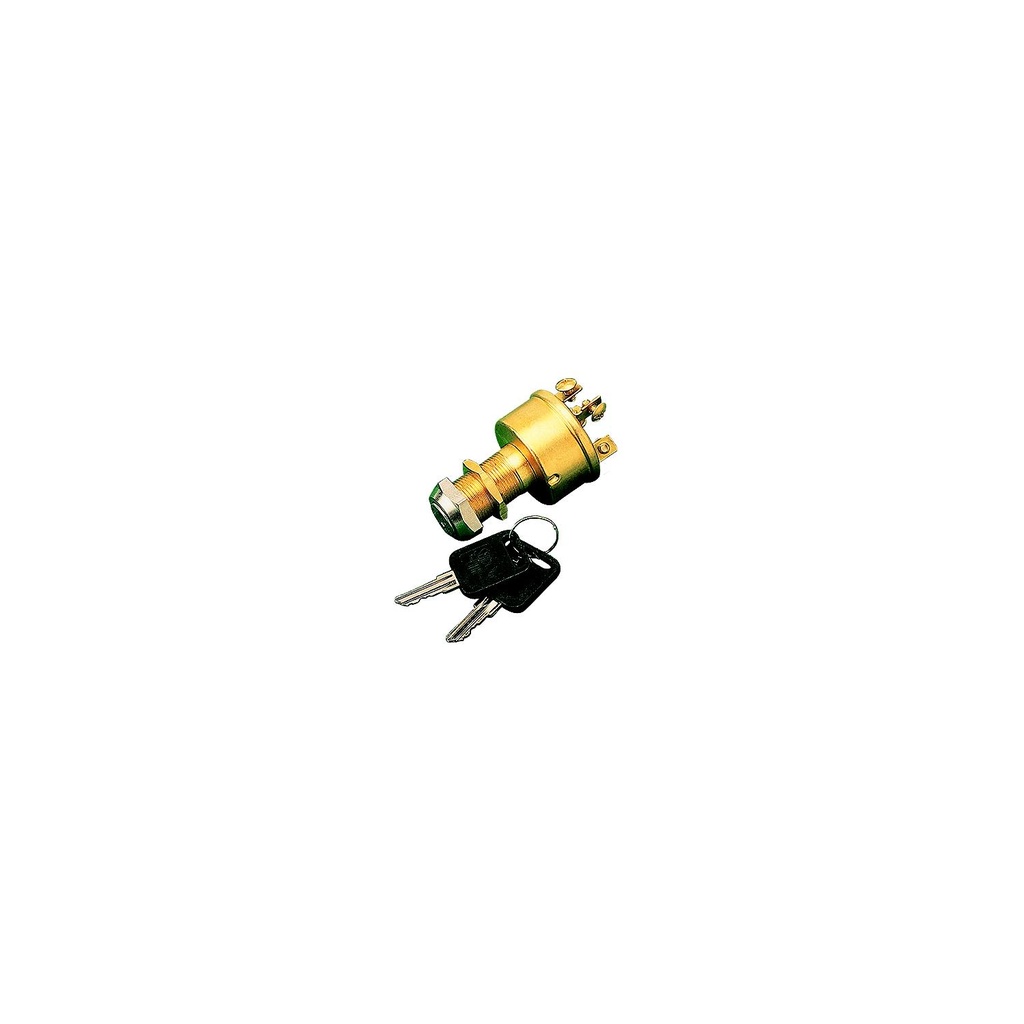

Three Position Magneto-Style Ignition Switch is constructed of stamped brass. For off, ignition, and start functions. Ignition (accessory) circuit is not activated in the solenoid (start) position. 13/16" diameter long shaft for a maximum panel thickness: 1-1/8. Five screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Includes two keys.
Brand | Sea-Dog Line |
_Panel | 1-1/8" Max |
_Shaft | Long |
_Terminals | 5 Screw |
_Boot | No |
Shipping Details | |
Weight: | 0.39 lb |
Length: | 7.88 in |
Height: | 2.13 in |
Width: | 3.88 in |
