Constructed of investment cast 316 stainless steel these Butt Hinges are designed for applications where both extra strength and corrosion resistance are required. The integral nylon bearings promote rattle-free, silent movement and give the hinge a smoother action. The bearings also disburse the weight of the door compensating for heavier doors and increased use. Commercial ANSI templated screw hole pattern. Installs with eight 1/4" FH fasteners (not included).
Brand | Sea-Dog Line |

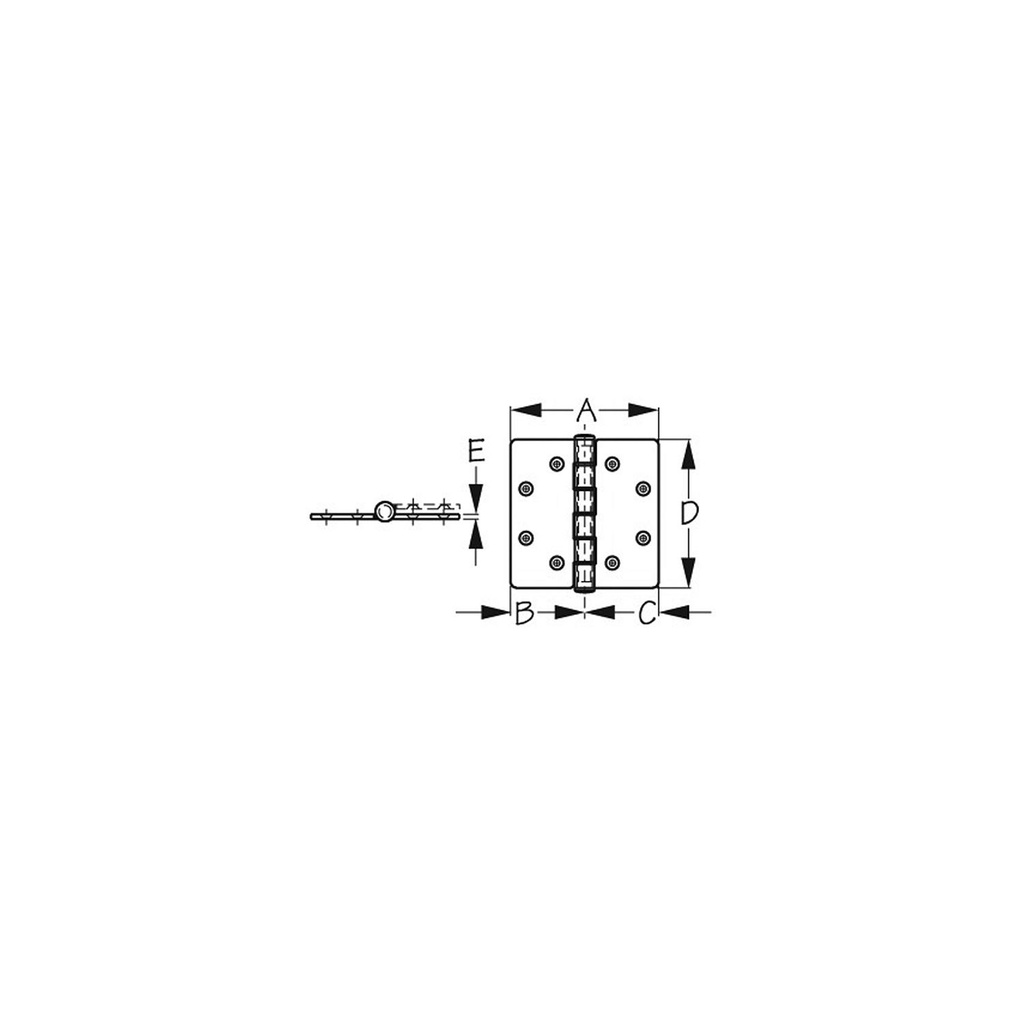

_A | 4" |
_B | 2" |
_C | 2" |
_D | 4" |
_E | 1/8" |
_Fastener | 1/4" FH |
Shipping Details | |
Weight: | 0.72 lb |
Length: | 4.0 in |
Height: | 4.0 in |
Width: | 4.0 in |
