Constructed of investment cast 316 stainless steel these Butt Hinges are designed for applications where both extra strength and corrosion resistance are required. The integral nylon bearings promote rattle-free, silent movement and give the hinge a smoother action. The bearings also disburse the weight of the door compensating for heavier doors and increased use. Commercial ANSI templated screw hole pattern. Installs with eight 1/4" FH fasteners (not included).
| Brand | Sea-Dog Line |

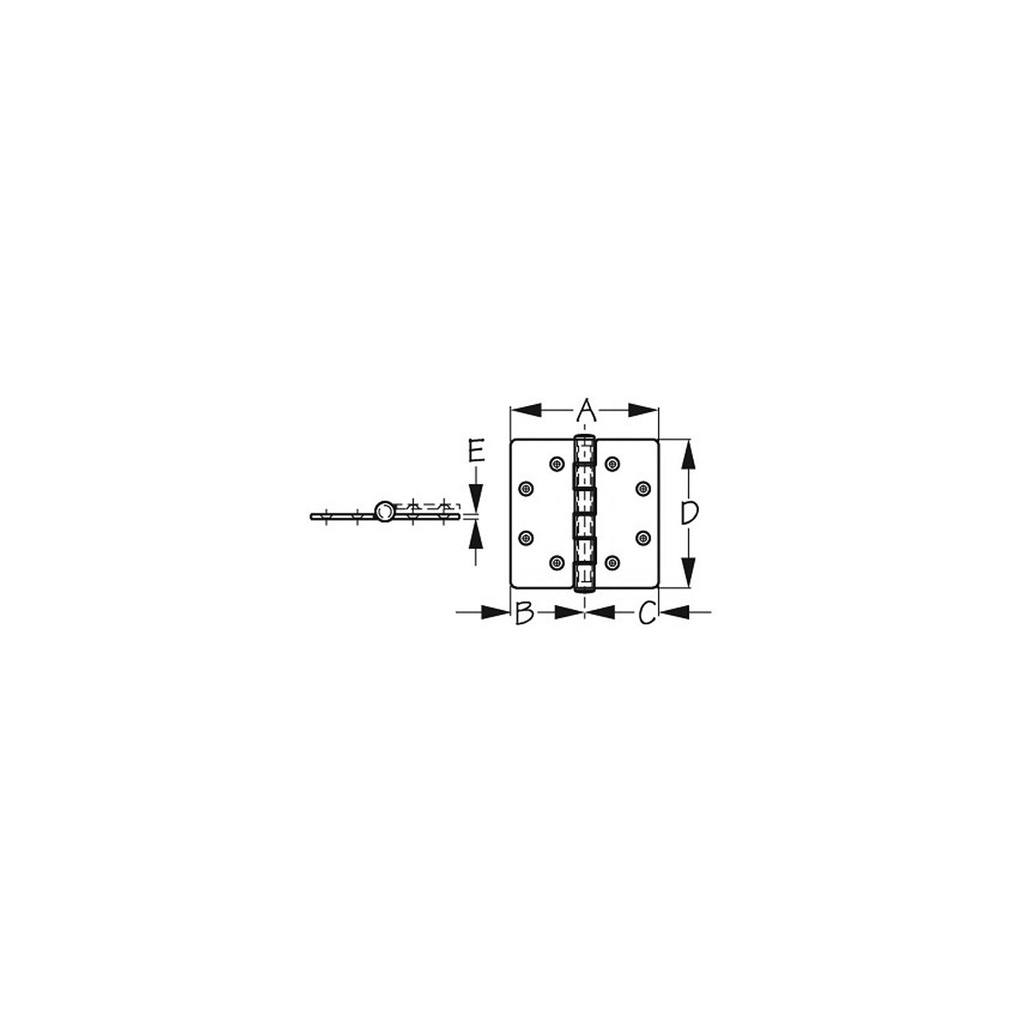

| _A | 3" |
| _B | 1-1/2" |
| _C | 1-1/2" |
| _D | 3" |
| _E | 1/8" |
| _Fastener | 1/4" FH |
| Shipping Details | |
| Weight: | 0.50 lb |
| Length: | 3.0 in |
| Height: | 3.0 in |
| Width: | 3.0 in |
