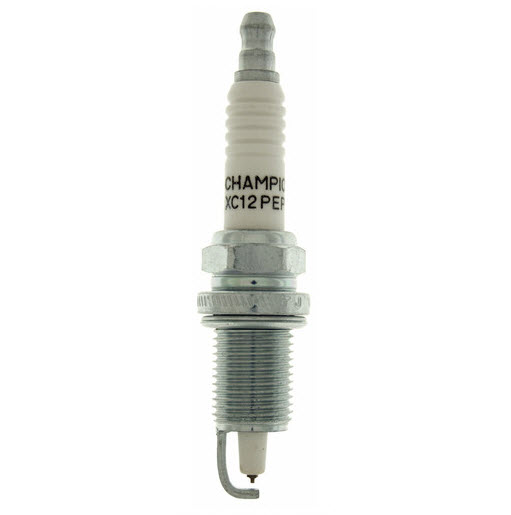

24-XC12PEPB - Champion Spark Plug ( #955)

Plug Type XC12PEPB

Seat Type Gasket

Hex Size (Inch) 0.625

Hex Size (MM) 15.880

Thread Size (Inch) 0.551

Thread Size (MM) 14.000

Thread Reach (Inch) 0.75

Taper Diameter (Inch) 0.25

Installed Height (Inch) 1.99

Insulator Projection (Inch) 0.29

Gap (Inch) 0.027-0.033

Gap (MM) 0.69-0.84

Center Electrode Diameter (Inch) 0.078

Center Electrode Material Platinum Firing Tip

Ground Electrode Material Platinum Pad Surface

Ground Electrode Quantity 1

Classification Champion Premium Small Engine

Resistor Plug Yes

Resistor Type Combined resistive/inductive suppression

Manufacturer Heat Range 12

Electrical Terminal Type Non-Removable Nut
