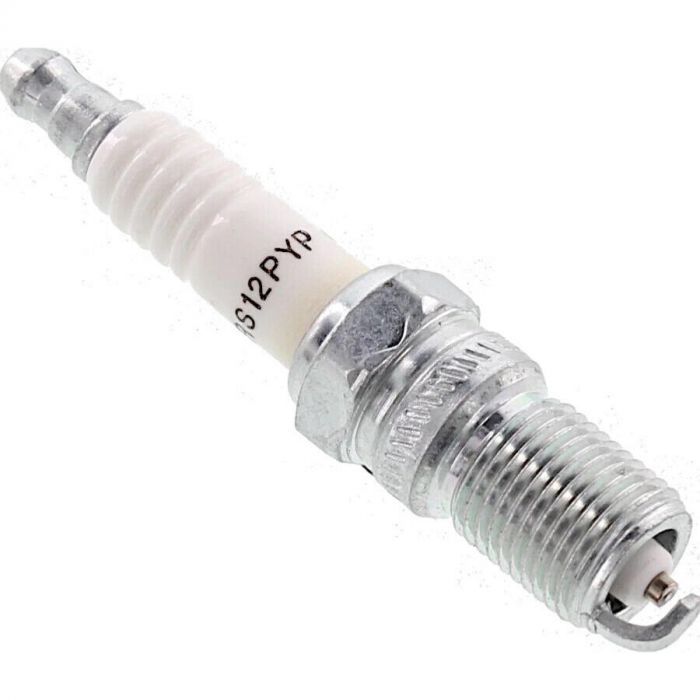

24-RS12PYP CHAMPION PLUG (#7401)

·         Part Number: 7401 (RS12PYP)

·         Plug Type: Double Platinum Power

·         Thread Size: 14 mm

·         Thread Pitch: 1.25 mm

·         Reach: 0.689" (17.5 mm)

·         Seat Type: Tapered

·         Hex Size: 5/8" (16 mm)

·         Pre-Gap Size: 0.049" - 0.050" (1.25 mm - 1.27 mm)

·         Heat Range: 12

·         Resistor: Yes

·         Center Electrode Material: Platinum

·         Ground Electrode Material: Platinum

·         Center Electrode Design: Fine Wire, Projected

·         Ground Electrode Shape: V-trimmed

·         Torque Specs: 7 - 15 lb. ft. (Cast Iron & Aluminum)
