29197202 Block Htx 72Mm Double | Lewmar

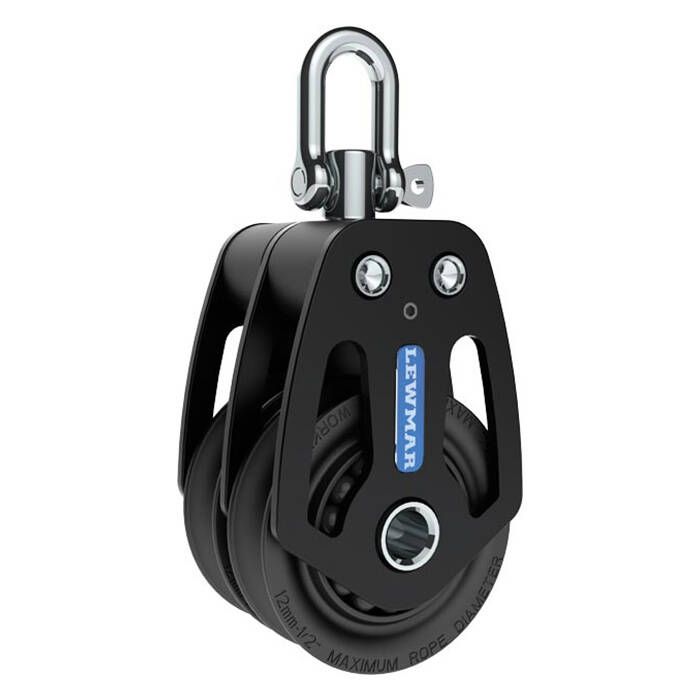

Lewmar 72MM HTX Block, Double, Black, 9/16" (14mm) Line
SKU:
239-29197202Category:
Pulleys & BlocksBrand:
Description
The Lewmar 72 mm HTX Double Block is the result of years of design and manufacturing experience, combined with collaboration with boat builders, designers and sailors. Drawing upon the design of the racing range, the HTX blocks are constructed from minimal alloy parts, providing enhanced reliability.
Features:
- Aluminum alloy cheeks
- High load capacity and large line size
- Side thrust ball bearings
- Head design from Lewmar racing range with swivel head locking mechanism through a grub screw
- Grub Screw is 2 mm Allen head
- Warranty: 3 Years
Specifications:
- Block Size: 72 mm
- Configuration: Double Block
- Safe Working Load: 2000 kg (approx. 4400 lbs)
- Maximum Line Size: 14 mm (approx. 9/16")
- Post Diameter: 16.5 mm (approx. 21/32")
- Shackle Pin Diameter: 9.8 mm (approx. 3/8")
- Fits Traveler Upstand: Sz1 NTR
- Fits Block Upstand: 29393000
- Fits Snap Shackle: 29929040
Specifications |
|
_Description |
Double |
_Size |
72MM |
_Work Load |
4405 lbs. |
Shipping Details |
|
Weight |
5.55 lb |
Length |
0.00 in |
Height |
0.00 in |
Width |
0.00 in |
