29101110Bk Dc1 Clutch Single 8-10Mm Black | Lewmar

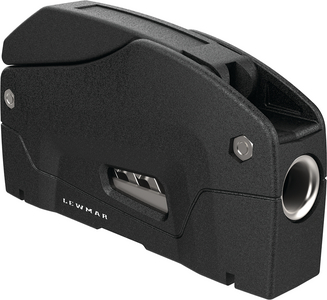

Lewmar 29101110 DC1 Low Load Rope Clutch, Single, 5/16" - 3/8"
SKU:
239-29101110Category:
Rope ClutchesBrand:
Variable geometry handle and unique grip pattern of dominoes that prevent rope fray. Unlike anything else on the market, Lewmar's non-cam clutch has a series of smooth, in-line and parallel rings hinged at the base. The line is run through these rings which are then tilted by a single connecting lever. When tilted, the rings force the line to snake through them, creating the necessary friction to hold the line securely.
- Domino Cluster and greater surface area holds line under load without fraying
- Controlled Release - Pull back handle combined with patented clutch and release mechanism provides controlled release even at full holding load.
- Solid link from handle to Domino Cluster
- Line size capability from 6mm (1/4 inch) to 14mm (9/16 inch)
Specifications |
|
_Line Size |
5/16" - 3/8" |
_Description |
DC1 Single |
_Work Load |
1100 lbs. |
Shipping Details |
|
Weight |
5.55 lb |
Length |
0.00 in |
Height |
0.00 in |
Width |
0.00 in |
