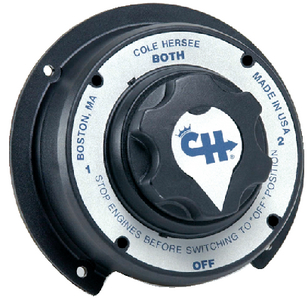

M-750-Bp Switch/Battery Selector Switch | Cole Hersee
Dual Battery Switch
SKU:
12-M750BPCategory:
Battery SwitchesBrand:
Permits current to be carried by either of 2 batteries, by 2 batteries simultaneously or cuts off all current at source. Ignition protected. Plastic case, knob and insulator. Four positions: OFF, ON-#1 Battery, ON-both batteries, and ON-#2 battery.
Rating 6-36V DC; 310A Continuous, 500A intermittent
3/8" copper studs
Size 6" flange diameter , Overall Height 2-5/8"
Installation surface mount or install through a panel with a 3-5/16" dia. hole
UL Listed. Marine UL Listed
Specifications |
|
_Type |
1, 2, Both, Off |
_Size |
6" Dia. x 2-5/8" |
Shipping Details |
|
Weight |
2.00 lb |
Length |
11.00 in |
Height |
3.00 in |
Width |
7.00 in |
