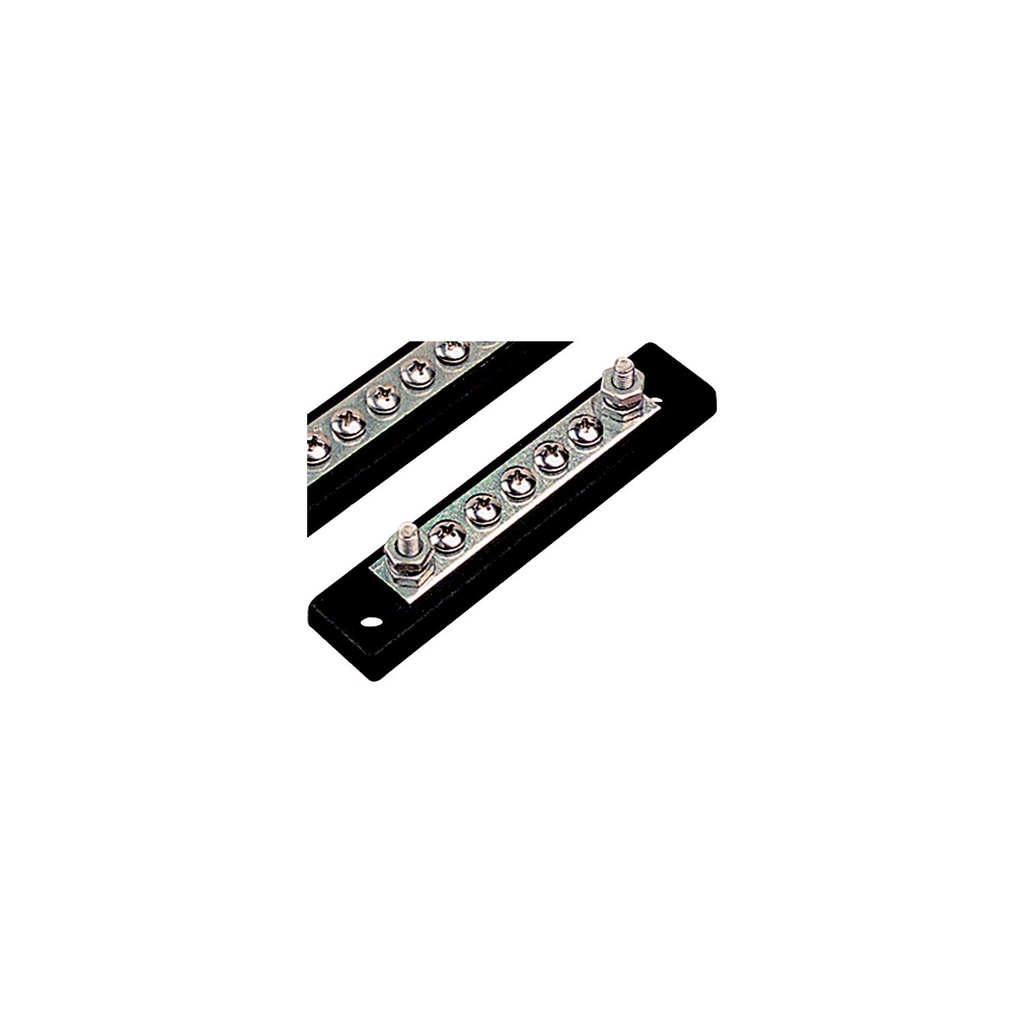

426711-1 Buss Bar 10 | Sea-Dog Line
Sea-Dog Line 4267111 Screw Terminal Buss Bar, 10 Terminals
SKU:
354-4267111Category:
Terminal Blocks & Bus BarsBrand:
This Buss Bar Screw-Terminal Block is equipped with two each #10-24 studs for main wire connection. Constructed of tin plated brass and ABS. Designed for use with tinned copper marine wire which shares the same expansion rate to prevent loosening wires and reducing electrolytic corrosion caused by pairing two disparate metals. Maximum: 48VDC, 100 amps. #8-32 terminals. Installs with two #10 RH fasteners (not included).
Specifications |
|
_A |
6-1/4" |
_B |
7/8" |
_C |
15/16" |
_D |
5-1/2" |
_Amps |
100 |
_Terminals |
10 x #8-32 |
Shipping Details |
|
Weight |
0.18 lb |
Length |
11.00 in |
Height |
1.00 in |
Width |
2.00 in |
